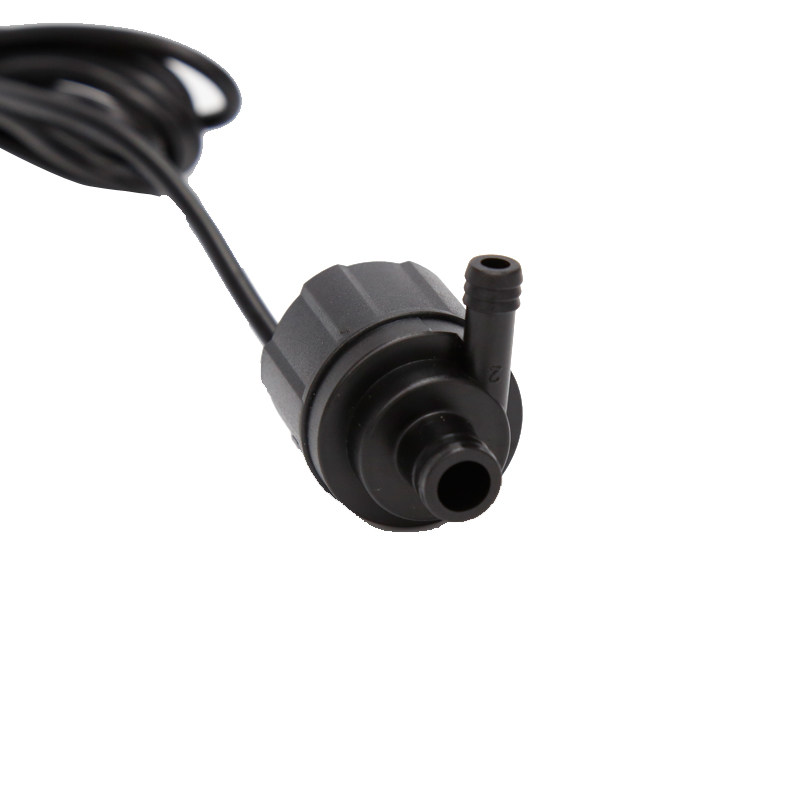

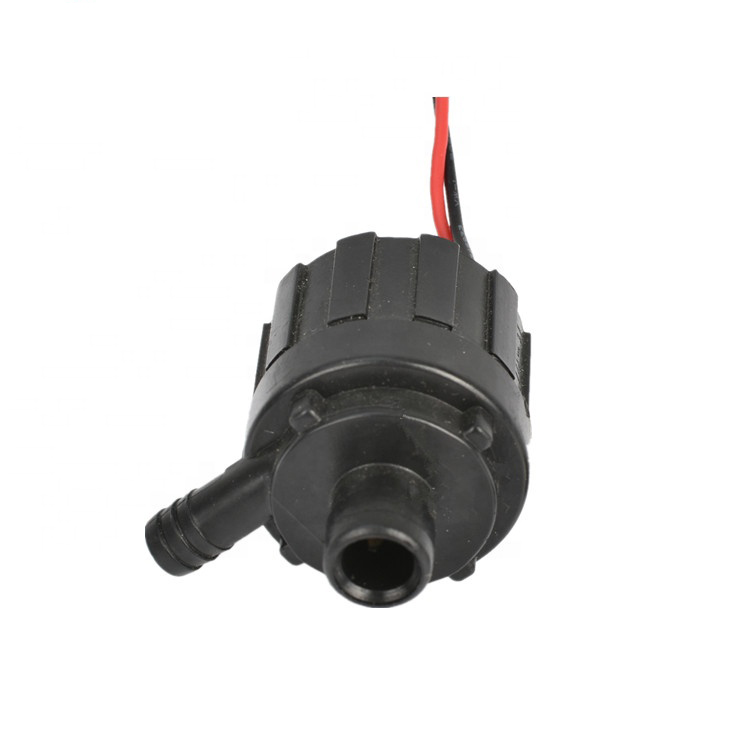

products-> TD10
| Model | TD10 |
| Rated Voltage | 12VDC(can customize from 5 to 24V, or wide voltage) |
| Max. Head | 200±20cm (can customize from 30cm to 200cm) |
| Max. Flow | 180±20L/H (can customize from 60L/H to 180L/H) |
| Power (W) | 5W（range from 1-5W) |
| Diameter | 10mm/ 6.8mm |
| Liquid Temp. | <70degC （Can customize high-temperature resistant materials.） |
| Pump Dimension | L40.3*W27*H35.5(mm) |
| IP Grade | IP68 |
| Noise | <40dB |
Fountain, aquarium, pool, water tank, humidifier, green wall decoration, solar water circulation, candle light decoration, green wall decoration, soil less culture, hydroponic, pet drinking, dishwasher, foot massage, crafts, cooling fans, etc.
Please note: voltage, Max static water head/ Max flow rate can be can be customized as your requirements. And also the cord length, the connector.
1. Compact size, but high efficiency, low power consumption.
2. Environmental protection and safe: No waste, no radiation, low safe voltage
3. Long lifetime: Over 30000 hours.
4. Heavy duty work: Can run a whole day and night continuously.
5. Low noise, within 40 db
6. Max working temperature: 70degC
7. Pump has run-dry protection, can stop working when there is no water inside pump.
8. It is better to operate in pure water to ensure its lifespan.
| No. | Item | Rated (V) | Max. Head | Max. Flow | Curr. (mA) | Start (V) | Power(W) |
|---|
| Rated voltage | Can be customized from 5V to 24V, or wide voltage |
| Max water head | Max Head is the maximum static height that the pump can lift water vertically with a hose |
| Max flow rate | It represents the highest volume of water that the pump can move just at the outlet(at zero vertical height. ) per unit of time (L/h or (L/min) ) , |
| Specific flow rate required at a specified height | If needed, please provide the specified data. |
| Cable length | Please provide the length data. |
| Whether need connector | YES/NO, if yes, please provide which type of connector you need |
| Type of connector
(See image below) |

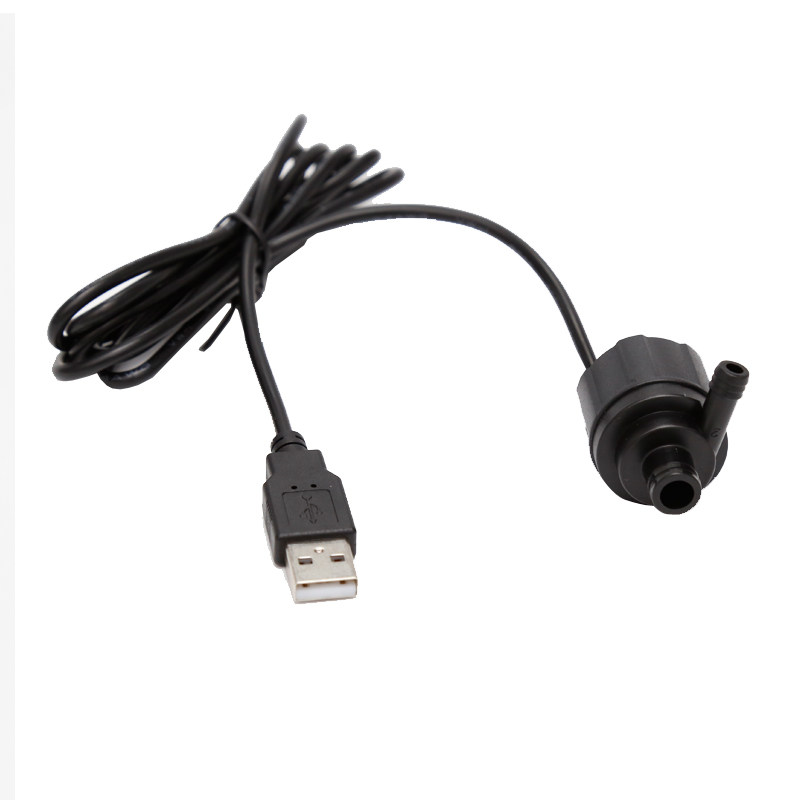

Three-core bare wire Two-core bare wire Waterproof connector USB DC 5521 female connector: DC 5521 male connector 2-pin connector or any specified connector |
| Dry-run protection | (automatically shuts off the pump when it detects a lack of water, The pump automatically starts operating when the water level is normal.) |
| PWM speed control | Optional |
| Voltage analog speed control | Optional |
| Whether need food-grade materials | Optional |
| Customized pump box | Optional |
| Other Customization needs | Yes (Let us know) |
| Have a need for new mold building? | Please feel free to contact us. We have 15 years of industry experience, serving well-known companies such as Dyson, Midea, Gree, Panasonic, Philips, Siemens, Electrolux, and Xiaomi. |
MODEL: TD10
