products-> JT4503-2
Fountain, aquarium, pool, water tank, humidifier, green wall decoration, solar water circulation, candle light decoration, green wall decoration, soil less culture, hydroponic, pet drinking, dishwasher, foot massage, crafts, cooling fans, etc.
-

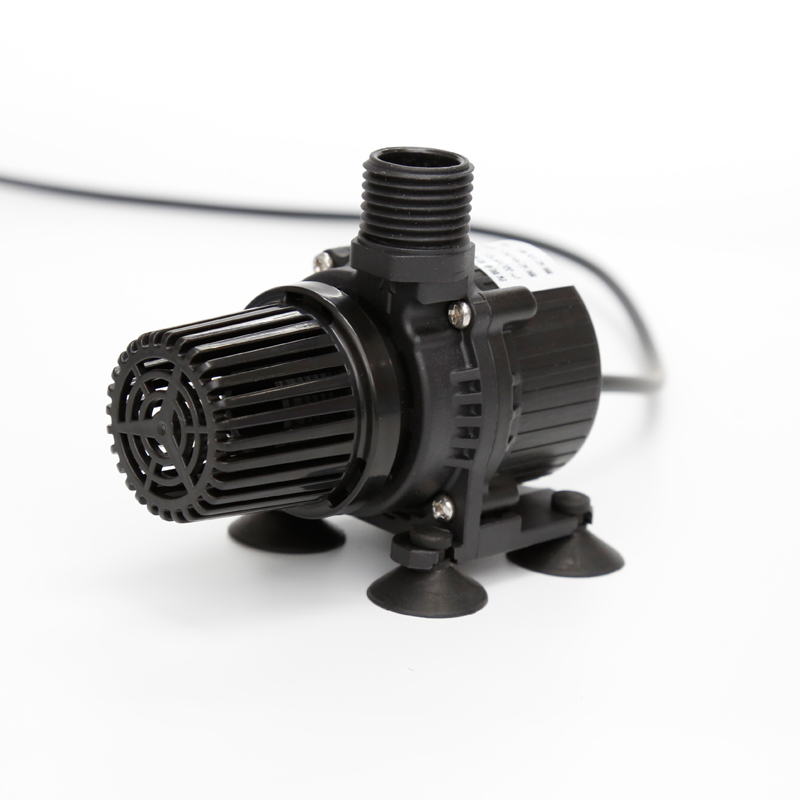

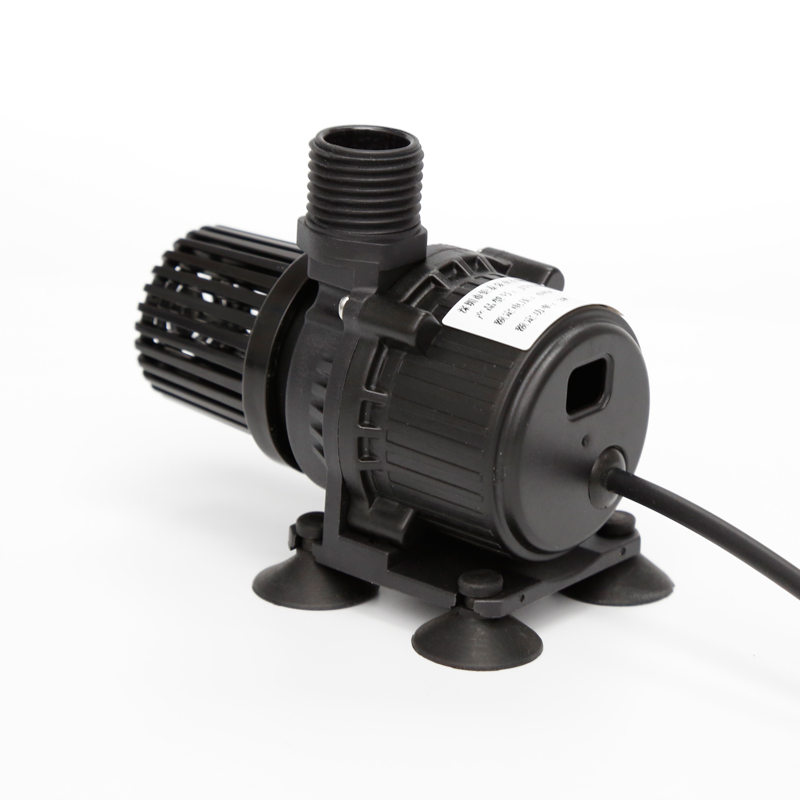

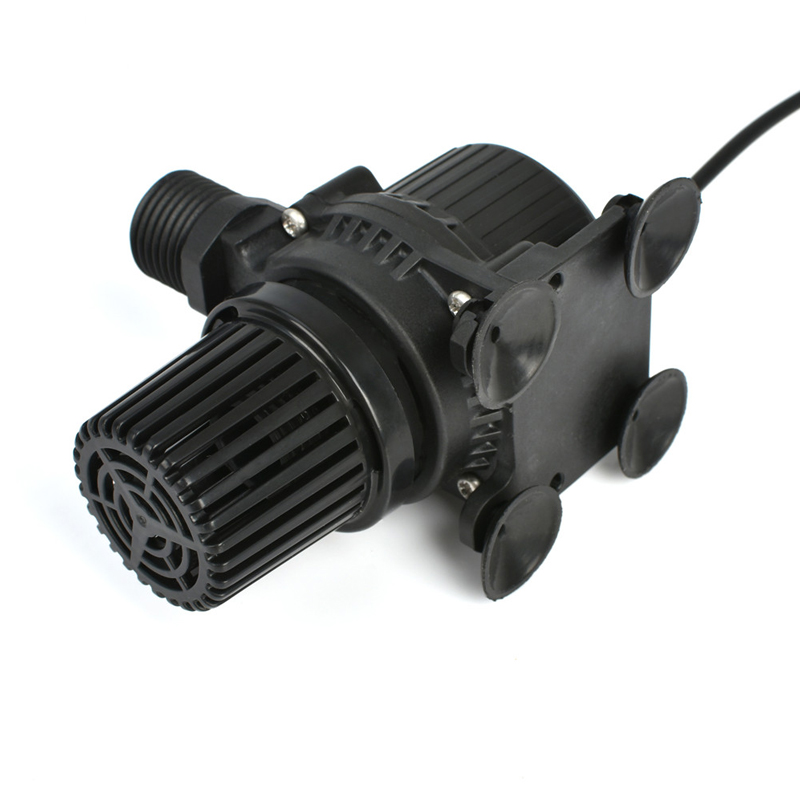

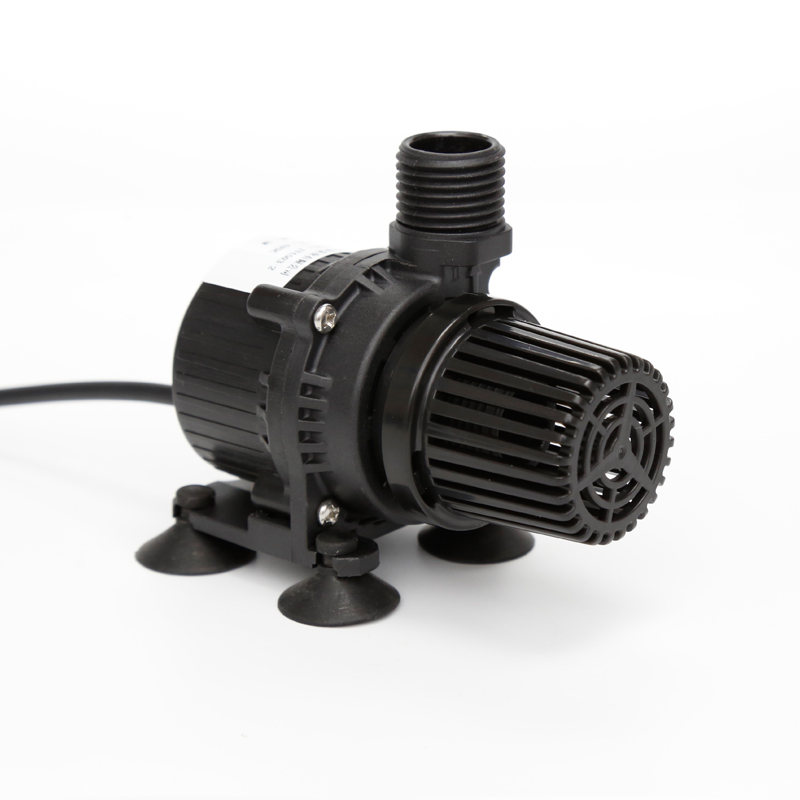

Model No.: JT4503-2
-
Rated working voltage: 24VDC (Can be customized from 5V to 24V, or wide voltage)
-
Start voltage: 12V DC
-
Working voltage range: 12-24V DC
-
Rated power: 31W
-
Rated current: 1250±200(mA)
-
Max static water head: 600±60cm (Can be customized from 50cm to 600cm)
-
Max static flow rate: 600±60L/H (Can be customized from 240L/H to 600L/H)
-
Lifespan: Continuous operation under normal working surrounding>20000H
-
Working Environment: PH value: PH 5-10(weak acid and weak base), workable both on land and in water.
-
Max noise: Under normal working condition,(1meter over the test instrument)<42dB
-
Max working temperature: Under room temperature surroundings, fluid medium temperature≤70℃
-
IP grade: IP68
-
Other: It passed the Salt Spray Test.
-
Color: Black
-
Pump dimensions: L90*W50*H72 (mm)
-
Inlet/Outlet Outer Diameter: 20.1mm/20.1mm (G1/2)
-
Customizable function:
1. Water shortage protection: when the water level is lower than the induction ball, it will automatically stop working until the water level is higher than the induction ball again
2. Filtration system: add filter sponge to prevents hair and particles from entering the pump.
Please note: The default is the regular model without water shortage protection or filtration system
3. PWM Speed control.
| No. | Item | Rated (V) | Max. Head | Max. Flow | Curr. (mA) | Start (V) | Power(W) |
|---|
| Rated voltage | Can be customized from 5V to 24V, or wide voltage |
| Max water head | Max Head is the maximum static height that the pump can lift water vertically with a hose |
| Max flow rate | It represents the highest volume of water that the pump can move just at the outlet(at zero vertical height. ) per unit of time (L/h or (L/min) ) , |
| Specific flow rate required at a specified height | If needed, please provide the specified data. |
| Cable length | Please provide the length data. |
| Whether need connector | YES/NO, if yes, please provide which type of connector you need |
| Type of connector
(See image below) |
Three-core bare wire Two-core bare wire Waterproof connector USB DC 5521 female connector: DC 5521 male connector 2-pin connector or any specified connector |
| Dry-run protection | (automatically shuts off the pump when it detects a lack of water, The pump automatically starts operating when the water level is normal.) |
| PWM speed control | Optional |
| Voltage analog speed control | Optional |
| Whether need food-grade materials | Optional |
| Customized pump box | Optional |
| Other Customization needs | Yes (Let us know) |
| Have a need for new mold building? | Please feel free to contact us. We have 15 years of industry experience, serving well-known companies such as Dyson, Midea, Gree, Panasonic, Philips, Siemens, Electrolux, and Xiaomi. |
