application-> AD20P
| Model | AD20P |
| Rated Voltage | 12VDC(can customize from 5 to 24V, or wide voltage) |
| Max. Head | 300±30 cm (can customize from 30cm to 300cm) |
| Max. Flow | 240±20 L/H (can customize from 60L/H to 300L/H) |
| Power (W) | 3.6W（range from 1-5W) |
| Diameter | Inlet: 8.5mm, Outlet: 8.5mm |
| Liquid Temp. | <70degC（Can customize high-temperature resistant materials.） |

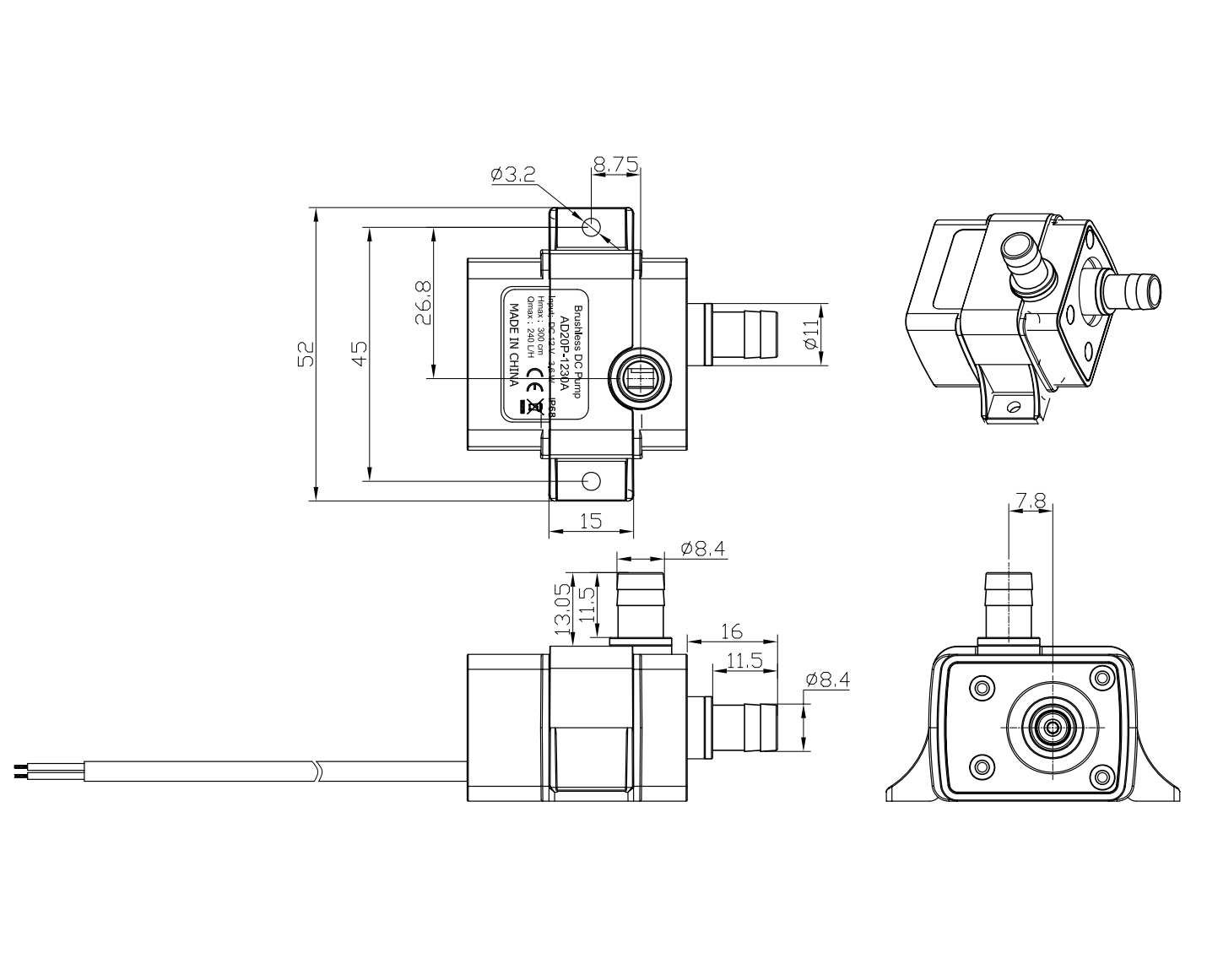

| Pump Dimension | L53*W40.7*H64.2MM |
| IP Grade | IP68 |
| Noise | <40dB |
Fountain, aquarium, pool, water tank, humidifier, green wall decoration, solar water circulation, candle light decoration, green wall decoration, soil less culture, hydroponic, pet drinking, dishwasher, foot massage, crafts, cooling fans, etc.
Customizable function: PWM Speed control
-
Model Character: AD20P-1230B
-
Rated working voltage: 12VDC(Can be customized from 5 to 24V, or wide voltage)
-
Start voltage: 10VDC
-
Working voltage range: 10-14VDC
-
Rated power: 3.6W
-
Rated current: 300±20(mA)
-
Max static water head: 300±20 cm (Can be customized from 30cm to 300cm)
-
Max static flow rate: 240±20 L/H (Can be customized from 60L/H to 300L/H)
-
PH value: PH5-10(weak acid and weak base), workable both on land and in water.
-
Max working temperature: Room temperature surroundings, fluid medium temperature≤70℃
-
IP grade: IP68
-
Color: Black
-
Pump dimensions: L54.4*W52*H40.8 (mm)
-
Inlet/Outlet Outer Diameter:8.5mm/8.5mm
-
Packing: Carton size: 345*240*295mm
| No. | Item | Rated (V) | Max. Head | Max. Flow | Curr. (mA) | Start (V) | Power(W) |
|---|---|---|---|---|---|---|---|
| 1 | AD20P-1 | 5V | |||||
| 2 | AD20P-2 | 8V | |||||
| 3 | AD20P-3 | 12V | |||||
| 4 | AD20A-0530B | 5 | 300 | 1000 | 3.3 | 5 | |
| 5 | AD20P-5 | 24V DC | Nil | Nil | Nil | Nil |
| Rated Voltage | Can be customized from 5V to 24V, or wide voltage |
| Max Water Head | Max Head is the maximum static height that the pump can lift water vertically with a hose |
| Max Flow Rate | It represents the highest volume of water that the pump can move just at the outlet(at zero vertical height. ) per unit of time (L/h or (L/min) ) |
| Max Flow Rate | |
| Specific flow rate required | |
| Specific flow rate required | |
| Connector |
