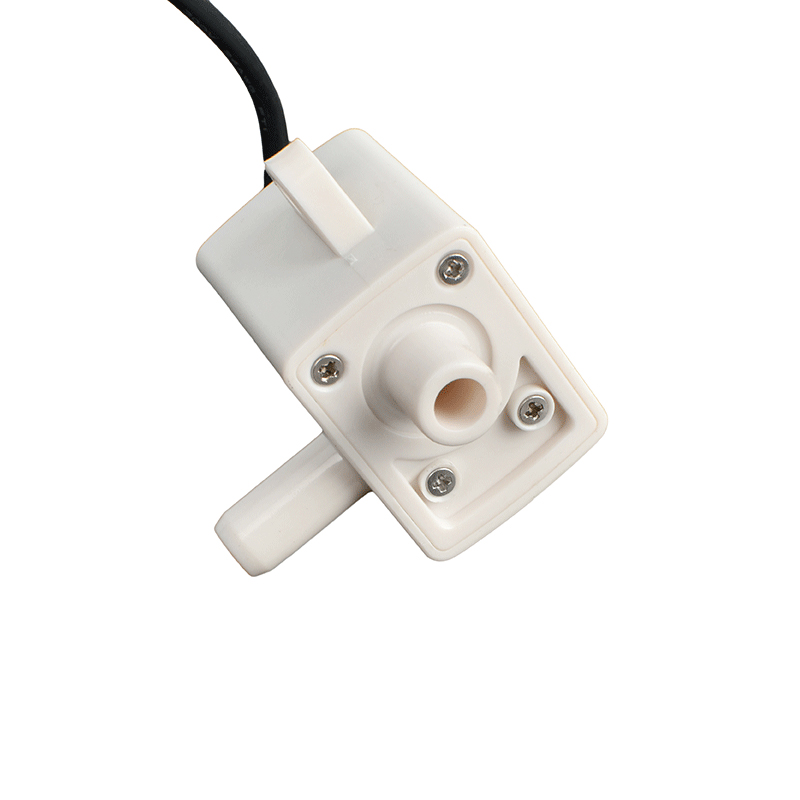

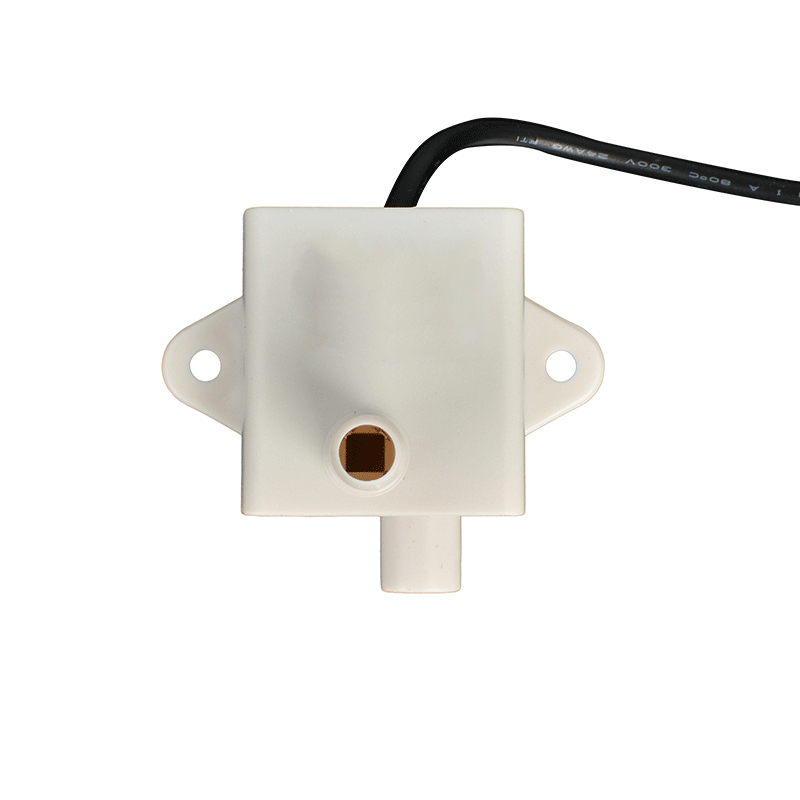

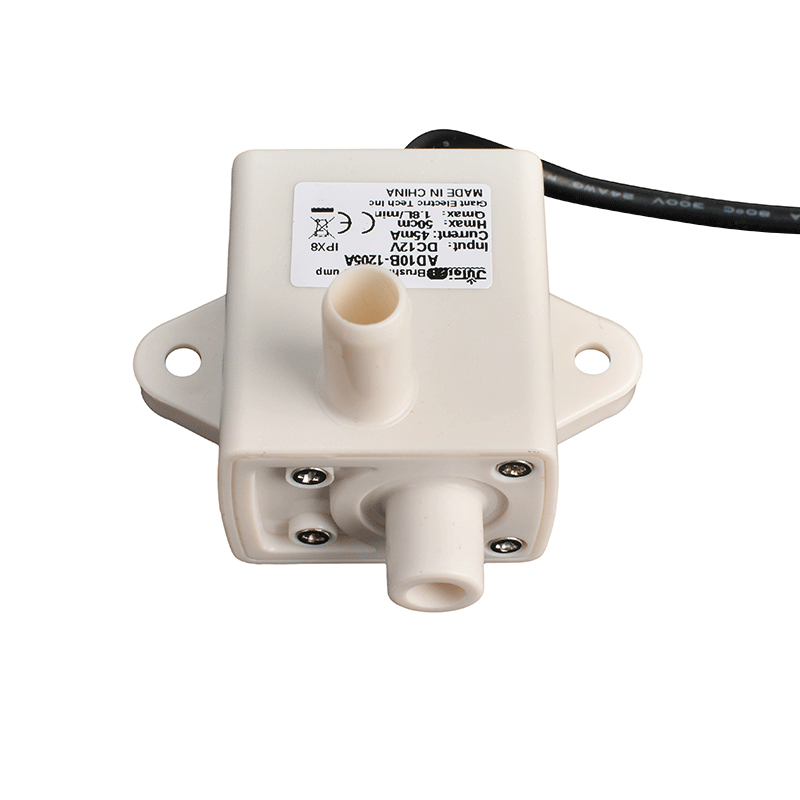

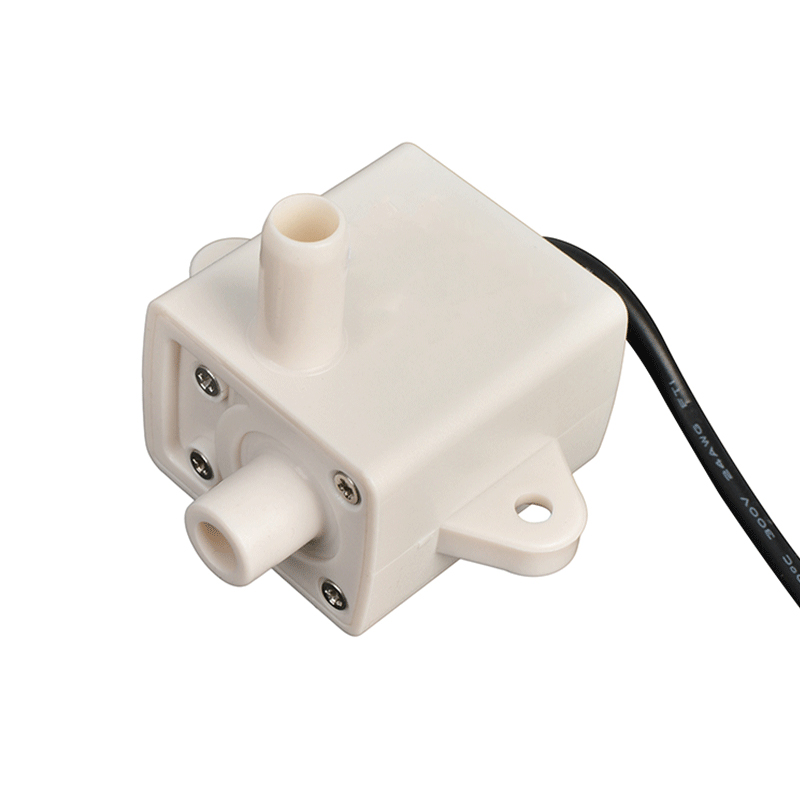

application-> AD10B
| Model | AD10B |
| Rated Voltage | 12VDC(can customize from 5 to 24V, or wide voltage) |
| Max. Head | 150±20cm (can customize from 30cm to 300cm) |
| Max. Flow | 200±20L/H (can customize from 60L/H to 300L/H) |
| Power (W) | 1.5W（range from 1-4W) |
| Diameter | 10.5mm / 9mm |
| Liquid Temp. | <70degC （Can customize high-temperature resistant materials.） |
| Pump Dimension | L49*W58*H46 (mm) |
| IP Grade | IP68 |
| Noise | <36dB |
Fountain, aquarium, pool, water tank, humidifier, green wall decoration, solar water circulation, candle light decoration, green wall decoration, soil less culture, hydroponic, pet drinking, dishwasher, foot massage, crafts, cooling fans, etc.
Customizable function: PWM Speed control
-
Model No.: AD10B-1215
-
Rated working voltage: 24VDC (Can be customized from 5V to 24V, or wide voltage)
-
Start voltage: 10VDC
-
Working voltage range: 10-14VDC
-
Rated power: 1.5W
-
Rated current: 125±10(mA)
-
Max static water head: 150±10cm (Can be customized from 50cm to 300cm)
-
Max static flow rate: 200±20L/H (Can be customized from 60L/H to 300L/H)
-
Lifespan: Continuous operation under normal working surrounding>20000H
-
Working Environment: PH value: PH5-10(weak acid and weak base), workable both on land and in water.
-
Max noise: Under normal working condition,(1meter over the test instrument)<35dB
-
Max working temperature: Under room temperature surroundings, fluid medium temperature≤70℃
-
IP grade: IP 68
-
Other: It passed the Salt Spray Test.
-
Color: White
-
Pump dimensions: L49*W58*H46 (mm)
-
Inlet/Outlet Outer Diameter: 0.0mm/9.0mm
-
Packing: Carton size: 326*313*330(mm)
-
Customizable function:
1. Water shortage protection: when the water level is lower than the induction ball, it will automatically stop working until the water level is higher than the induction ball again
2. Filtration system: add filter sponge to prevents hair and particles from entering the pump.
Please note: The default is the regular model without water shortage protection or filtration system
3. PWM Speed control.
| No. | Item | Rated (V) | Max. Head | Max. Flow | Curr. (mA) | Start (V) | Power(W) |
|---|
