application-> AD102
| Model | AD102 |
| Rated Voltage | 12VDC(can customize 5 to 24V, or wide voltage) |
| Max. Head | 200±20 cm (can customize from 30cm to 200cm) |
| Max. Flow | 300±30 L/H (can customize from 60L/H to 300L/H) |
| Power (W) | 5W（range from 1-5W) |
| Diameter | ------ / 9mm |
| Liquid Temp. | <70degC （Can customize high-temperature resistant materials.） |
| Pump Dimension | L38.3*W38.7*H42MM |
| IP Grade | IP68 |
| Noise | <40dB |
Fountain, aquarium, pool, water tank, humidifier, green wall decoration, solar water circulation, candle light decoration, green wall decoration, soil less culture, hydroponic, pet drinking, dishwasher, foot massage, crafts, cooling fans, etc.

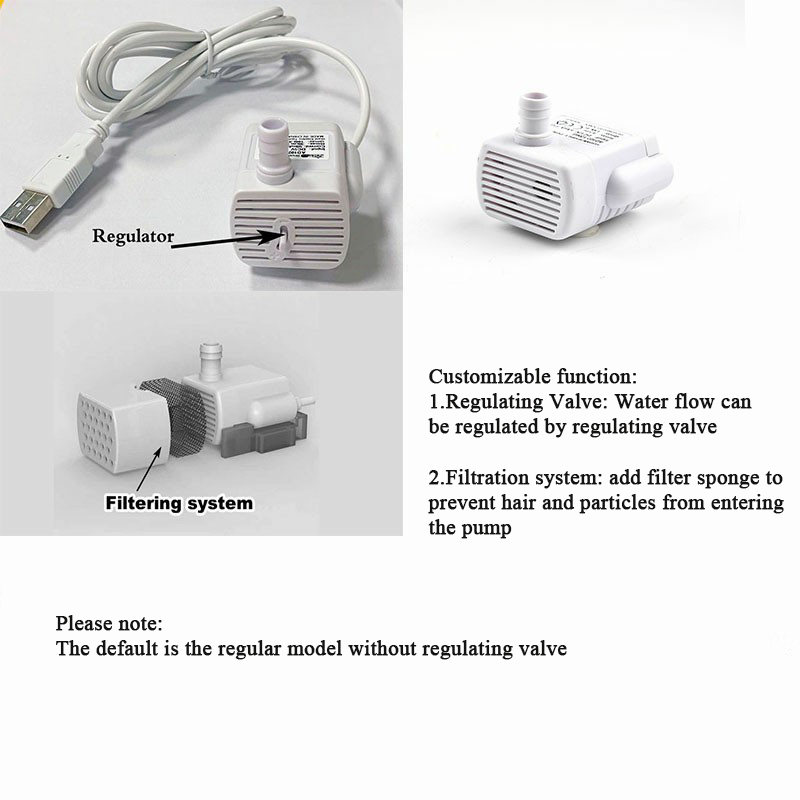

Customizable function: PWM Speed control
-
Model Character: AD102-0501A
-
Rated working voltage: 5VDC (Can be customized from 5V to 24V, or wide voltage)
-
Start voltage: 4.5VDC
-
Working voltage range: 4-6VDC
-
Rated power: 1.5W
-
Rated current: 310±40(mA)
-
Max static water head: 100±5cm (Can be customized from 30cm to 200cm)
-
Max static flow rate: 170±20L/H (Can be customized from 60L/H to 300L/H)
-
Lifespan: Continuous operation under normal working surrounding>20000H
-
Working Environment: PH value: PH5-10(weak acid and weak base), workable both on land and in water.
-
Max noise: Under normal working condition,(1meter over the test instrument)<35dB
-
Max working temperature: Under room temperature surroundings, fluid medium temperature≤70℃
-
IP grade: IP68
-
Others: It passed the Salt Spray Test
-

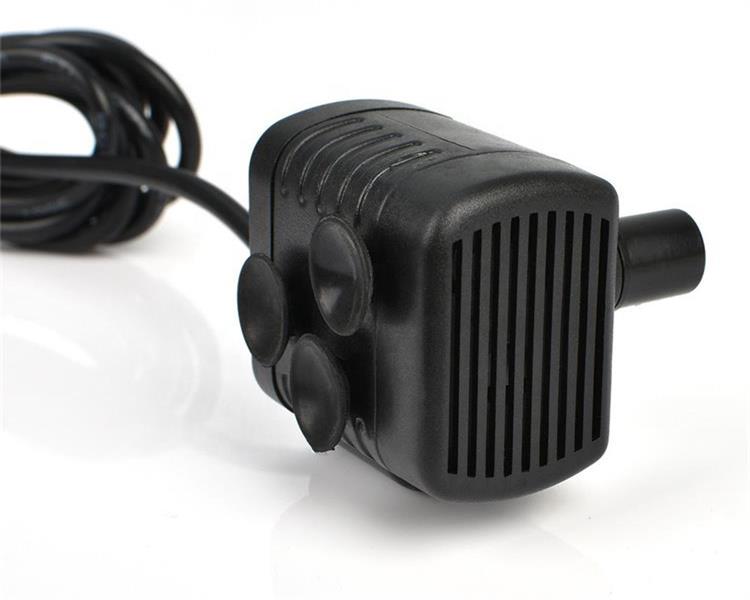

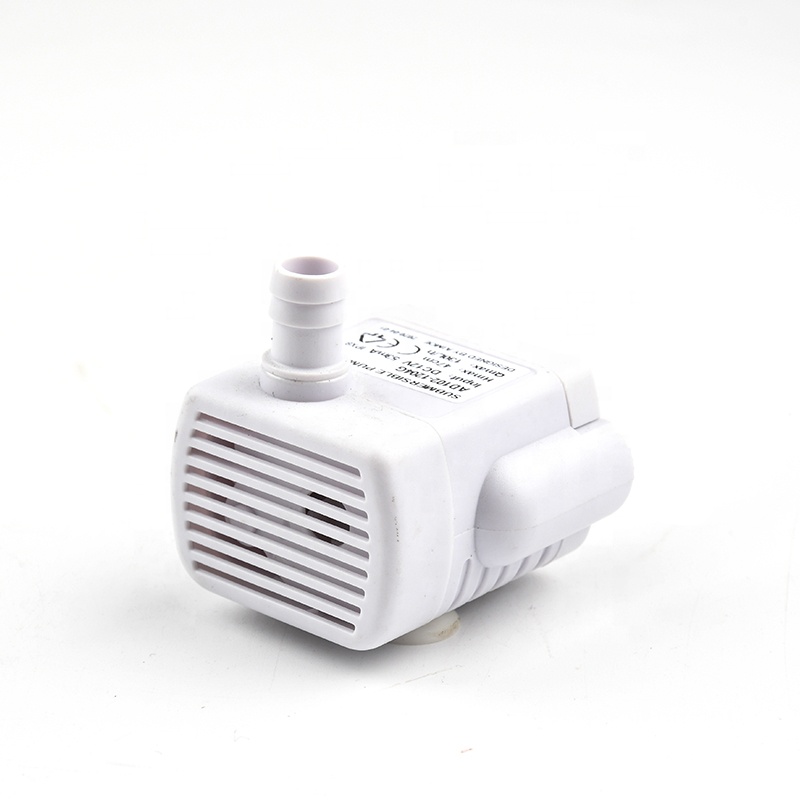

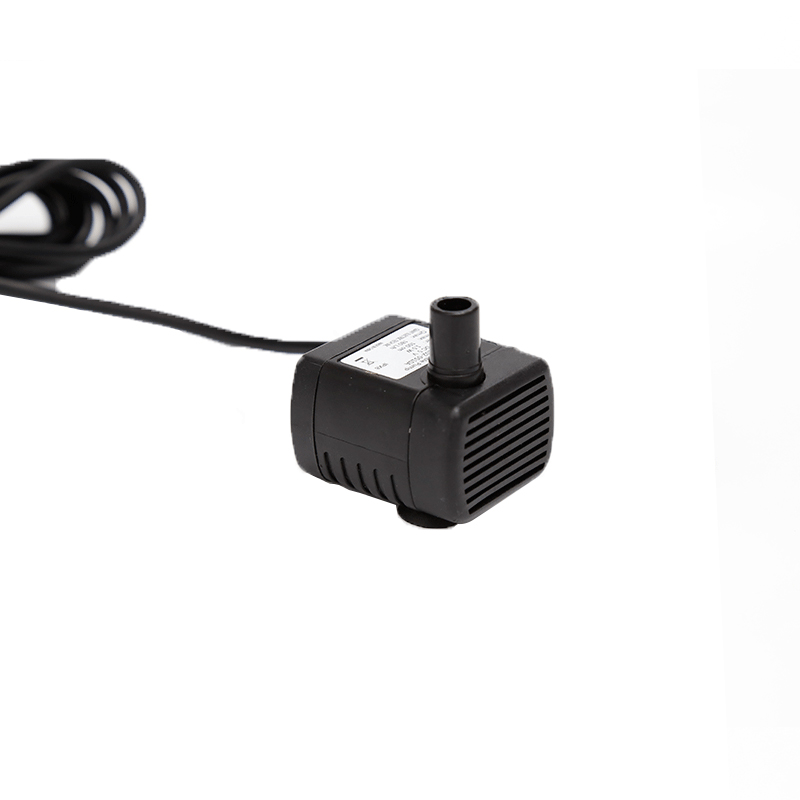

Color: Black/White
-
Pump dimensions: L38.3*W38.7*H42.0 (mm)
-
Inlet/Outlet Outer Diameter: 0.0mm/9.0mm
-
Packing: Carton size:360*200*150(mm)
-
QTY/CTN: 40pcs/CTN.
| No. | Item | Rated (V) | Max. Head | Max. Flow | Curr. (mA) | Start (V) | Power(W) |
|---|---|---|---|---|---|---|---|
| 1 | AD102-1 | 24V - 48V | |||||
| 2 | AD102-3 | 15V to 24V | 100 | 100 | 100 | 100 |
| Rated Voltage | 12V |
| Rated Voltage | 12V |
| Max Water Head | customize |
| Max Water Head | customize |
| Max Flow Rate | |
| Cable Length | |
| Type of Connector |
